Bauer Agitation Technology
Powerful- compact- user friendly
Properly stirred slurry guarantees uniform distribution of nutrients, that is to say optimum growth and increased yields. Optimum homogenisation of fluid mediums:
- agriculture
- biogas plants
- sewage plants
- industrial areas
Optimum structural form – high-quality materials
A special design with the motor and propeller shaft lying on the same axis provides high efficiency. An ingenious oil-distribution system ensures optimal lubrication of the mixer at any angle.
- enormous mixing capability
- high efficiency
- for all pit sizes
- simple installation

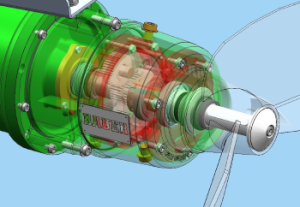

Robust planetary reduction gearbox
Bauer mixers have a fluid, elegant and slim structural form thanks to the planetary gearbox. In combination with the large mixer blade and special stirring edges a high degree of efficiency is achieved.
- enormous stirring force
- high degree of efficiency
- for all pit designs
- easy installation
Bauer Tractor Mixer

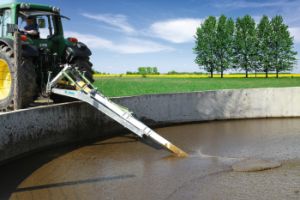

Turbomixer MTXH
Standard Extent of Supply
- mixer shaft 120*120*4 with sturdy shaft
- mixer blades with guards
- PTO connection 1 3/8″ with guard
- universal lifting frame for attachment to tractor hydraulics
- with swivel device for insertion into small pit openings
- two hydraulic cylinders to swivel the lfiting frame
- without additional swiveling aid
- mixer shaft and blades galvanized
- minimum pit opening: 80 x 80 cm

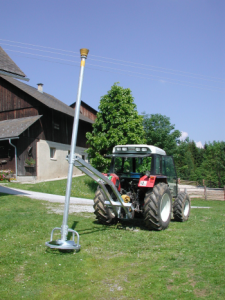

MTX
Standard Extent of Supply
- mixer shaft with sturdy shaft running in oil bath
- mixer blades with guards
- PTO connection 1 3/8″ with guard
- universal lifting frame galvanized
- without rope winch
- with loose mixer trolley
- mixer shaft and blades galvanized
- minimum pit opening: 80 x 80 cm
Bauer Electric Mixer

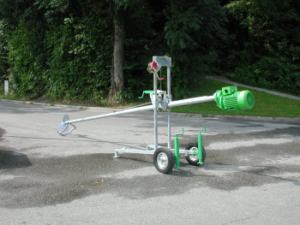

Mixer Mex 305
Electric Mixer MEX 305
- closed E-motor with star-delta reversing switch 7,5 kW (10HP), 380-440 V, 50Hz
- type of protection IP 55
- motor protection
- mixing rod with multiple-bearing drive shaft running in oil bath
- mixer blade with guard bow
- rpm 1450 min-1
- minimum pit opening: 60 x 60 cm
- without mixer trolley

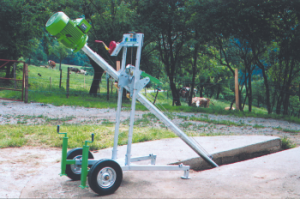

Mixer Mex 450 G
Electric Mixer MEX 450 G
- closed electric motor with star-delta reversing switch 7,5kW (10HP),9,2 kW (12,5HP), 400 V, 50 Hz
- type of protection IP 55
- motor protection
- reduction gear unit
- mixing rod with multiple-bearing drive shaft running in oil bath
- mixer blades with guard bow
- rpm 610min-1
- minimum pit opening: 60 x 60 cm
- without mixer trolley

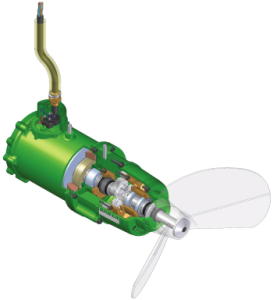

Submersible Moter Mixer
Submersible Moter Mixer MSXH
Submersible Motor Mixer MSXH
- submersible motor mixer with 400V/50Hz submersible motor, 1450 min-1
- two-wing thrust propeller – stainless steel
- mounting bracket with grade adjustment – in stainless steel
- planetary gears, mechanical seal in oil bath, safe from running dry
- thermal winding protection (PTC / PTC resistor)
- temperature class H, media temperature 65°C
- sealing sensor for planetary gear
- 12 m cable 12×2,5 in especially durable design with traction relief and 6m cable protective tube – without plug
- motor protection is guaranteed only with original BAUER control unit (accessory) with built-in thermal tripping relay for PTC thermistor detectors and overcurrent relay
