WaterMatic FAMILY

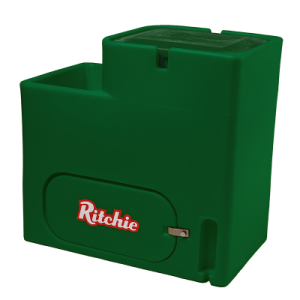

Green WaterMatic 100 #18574
Features
The WaterMatic 100 is a single sided automatic waterer for horses, cattle and small herds. Ideal for stalls, small pens or paddocks. Optional heat required for winter use. Waters between 1-20 horses or beef. Drink height 18″.

  • No gaskets to crack, tear or leak
  • One piece rugged fountain body
  • Generous side access panel
  • Easy to clean and maintain
  • All surfaces slope to drains for easy clean out
  • Ideal for individual stalls or pens
  • 10 year warranty
Specifications

Length  24.5in/62.23cm

Width  14in/35.56cmOverall

Height  23.5in/59.69cm

Shipping Weight  36lb/16.33kg

Drinking Height  18in/45.72cm

Capacity  2.8gal/10.6L

Herd Capacity  20 horses, 20 beef, 50 sheep

Green WaterMatic 100

The WaterMatic family combines the best features of Ritchie waters, with the easiest operation and simple maintenance. The WaterMatic 100 is a small compact design is fully insulated to keep the water cool in the summer and provides added protection during the winter. The drop in cover is easy to lift for maintenance and cleaning. Trough slopes towards drain hole for easy cleaning and debris removal. Drain plugs can be moved to the valve chamber opening for short-term trough shut-off during cleaning, when the pen is empty or during excessively cold nights. Low capacity and fast refill valve allows for low water waste and fresh water on demand. Optional heat package is required in freezing conditions.

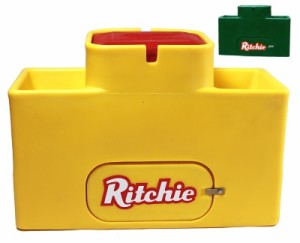

WaterMatic 150
Features
The WaterMatic 150 is a double sided trough automatic waterer for horses, cattle or small herds. Ideal for fence line applications, small pens and paddocks. Optional heat required for winter use. Waters between 1-40 horses or beef. Drink height 18″

  • No gaskets to crack, tear or leak
  • One piece rugged fountain body
  • Generous side access panel
  • Easy to clean and maintain
  • All surfaces slope to drains for easy clean out
  • Ideal for a fence line application
  • Optional Immersion Heater and Self Regulating heat cable for freezing conditions.
  • 10 year warranty
Specifications

Length  33.5in/85.09cm

Width  14in/35.56cm

Overall Height  23.5in/59.69cm

Shipping Weight  47lb/21.32kg

Drinking Height  18in/45.72cm

Capacity  4.2gal/15.9L

Herd Capacity  40 horses, 40 beef, 100 sheep



WaterMatic 150

The WaterMatic family combines the best features of Ritchie waters, with the easiest operation and simple maintenance. The WaterMatic 150 is ideal for fence line applications with its small compact two-trough design. The waterer is fully insulated to keep the water cool in the summer and provides added protection during the winter. The drop in cover is easy to lift for maintenance and cleaning. Trough slopes towards drain holes for easy cleaning and debris removal. Drain plugs can be moved to the valve chamber opening for short-term trough shut-off during cleaning, when the pen is empty or during excessively cold nights. Low capacity and fast refill valve allows for low water waste and fresh water on demand. Optional heat package is required in freezing conditions.

WaterMatic 300 #18050
Features
The WaterMatic 300 is a double sided trough automatic waterer for larger herds. Use when watering cattle by splitting a fence or stand alone in feedlot or pen. Will handle up to 100 beef/50 dairy. Drink height 26″

  • No gaskets to crack, tear or leak
  • One piece rugged fountain body
  • Generous side access panel
  • Easy to clean and maintain
  • All surfaces slope to drains for easy clean out
  • Ideal for a fence line application
  • Optional Immersion Heater and Self Regulating heat cable.
  • 10 year warranty
Specifications

Length   21.5in/54.61cm

Overall Height  31in/78.74cm

Shipping Weight  69lb/31.3kg

Drinking Height  26in/66.04cm

Capacity  8.2gal/31.04L

Herd Capacity  125 horses, 125 beef, 60 dairy



WaterMatic 300

The WaterMatic family combines the best features of Ritchie waters, with the easiest operation and simple maintenance. The WaterMatic 300 is ideal for fence line applications with its two trough design. The waterer is fully insulated and impact resist to your larger herds. The insulation keeps the water cool in the summer and provides added protection during the winter. The drop in cover is easy to lift for maintenance and cleaning. Trough slopes towards drain holes for easy cleaning and debris removal. Drain plugs can be moved to the valve chamber opening for short-term trough shut-off during cleaning, when the pen is empty or during excessively cold nights. Low capacity and fast refill valve allows for low water waste and fresh water on demand. Optional heat package is required in freezing conditions.

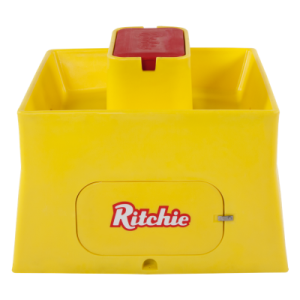

WaterMatic 1000 #18110
Features
The WaterMatic 1000 is an automatic waterer for large herds featuring an all-around drinking surface. Use for large herds by splitting a fence or stand alone in feed lot. Will handle up to 275 beef/135 dairy. Drink height 26″

  • No gaskets to crack, tear or leak
  • All around drink surface
  • One piece rugged fountain body
  • Generous side access panel
  • Easy to clean and maintain
  • All surfaces slope to drains for easy clean out
  • 10 year warranty
Specifications

Length  42in/106.68cm

Width  42in/106.68cm

Overall Height  32in/81.28cm

Shipping Weight  120lb/54.43kg

Drinking Height  26in/66.04cm

Capacity  22gal/83.28L

Herd Capacity  275 beef, 135 dairy

WaterMatic 1000

The WaterMatic family combines the best features of Ritchie waters, with the easiest operation and simple maintenance. The WaterMatic 1000 features an all around drink surface and is fully insulated and impact resist to your larger herds. The insulation keeps the water cool in the summer and provides added protection during the winter. The drop in cover is easy to lift for maintenance and cleaning. Trough slopes towards drain holes for easy cleaning and debris removal. Drain plugs can be moved to the valve chamber opening for short-term trough shut-off during cleaning, when the pen is empty or during excessively cold nights. Low capacity and fast refill valve allows for low water waste and fresh water on demand. Optional heat package is required in freezing conditions.

Immersion heaters provide added protection to all plastic Ritchie waterers during the winter. Minimum maintenance is required to keep them functioning for several years.
Cleaning your WaterMatic series waterer frequently is quick and easy following the steps shown in this video. With little water waste, you can ensure your animals have a constant supply of fresh clean water at their demand.
Changing the valve rubber in a Ritchie automatic waterer valve will help to elongate the life of your valve. Normal wear and tear or a buildup of deposits from your original water source are the main reasons a valve rubber will need to be flipped over or changed. Once you notice a small drip at your valve you will know it is time to change your valve rubber.
