Thrifty King FAMILY

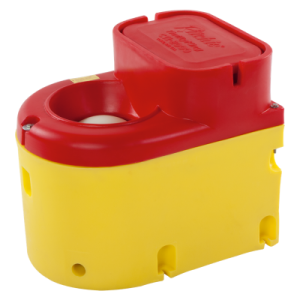

Thrifty King CT1-2000 #16271
Features
The Thrifty King CT1 is an energy efficient or energy free, single drink automatic livestock waterer. Ideally used in small pens or hobby farms. Waters between 10-30 beef cattle. Drink height is 19″

  • ThermalEqualizer design in patented drinking well eliminates cold spots in water storage
  • Elliptical closures tip easily so animals can drink without resistance, unlike round balls which take a great deal of pressure
  • Easy access for easy maintenance
  • High capacity valve, protected from cold by patented drink well
  • Finger-lift service cover; No tools, springs, or clips
  • Optional electric heat, immersion heater and supply line heat cable
  • Covers water so mosquitoes don’t have a place to breed
  • 10 year warranty
Specifications

Length28in/71.12cm

Width20.3in/51.56cm

Overall Height25in/63.5cm

Shipping Weight53lb/24.04kg

Drinking Height19in/48.26cm

Capacity11.2gal/42.4L

Herd Capacity30 beeft

Thrifty King CT1-2000

Thrifty King insulates the water so well that you can make it through the winter without supplying heat in many areas, and it takes little electricity in those areas where the winter is severe or energy free requirements are not met. The water is completely surrounded by fully insulated polyethylene plastic – including an insulated elliptical enclosure covering the drink areas. The covered water keeps the water cooler in summer and reduces loss of water due to evaporation. The cover also protects against mosquitoes breeding, lowering the risk of the spread of West Nile Virus. The CT 1 is single drink automatic waterer for cattle.

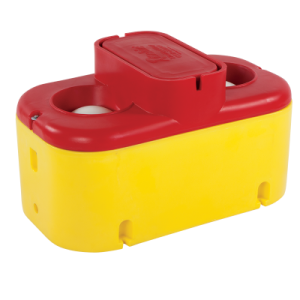

Thrifty King CT2-2000 #16299
Features
The Thrifty King CT2-2000 is a double sided livestock waterer featuring energy efficiency or energy free use for a fence line or a stand-alone application. Waters between 10-100 beef cattle. Drink height 19″

  • ThermalEqualizer design in patented drinking well eliminates cold spots in water storage
  • Elliptical closures tip easily so animals can drink without resistance, unlike round balls which take a great deal of pressure
  • Easy access for easy maintenance
  • High capacity valve, protected from cold by patented drink well
  • Finger-lift service cover; No tools, springs, or clips
  • Optional electric heat, immersion heater and supply line heat cable
  • Covers water so mosquitoes don’t have a place to breed
  • 10 year warranty
Specifications

Length  42.8in/108.71cm

Width  24in/60.96cm

Overall Height  25in/63.5cm

Shipping Weight  90lb/40.82kg

Drinking Height  19in/48.26cm

Capacity  28gal/105.99L

Herd Capacity  100 beef

Thrifty King CT2-2000

Thrifty King insulates the water so well that you can make it through the winter without supplying heat in many areas, and it takes little electricity in those areas where the winter is severe or energy free requirements are not met. The water is completely surrounded by fully insulated polyethylene plastic – including an insulated elliptical enclosure covering the drink areas. The covered water keeps the water cooler in summer and reduces loss of water due to evaporation. The cover also protects against mosquitoes breeding, lowering the risk of the spread of West Nile Virus. The CT2-2000 is a two trough automatic waterer for cattle ideal for a fence line or stand-alone application.

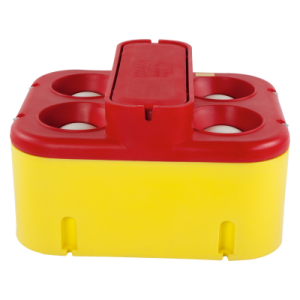

Thrifty King CT4-2000 #16430
Features
The Thrifty King CT2-2000 is a double sided livestock waterer featuring energy efficiency or energy free use for a fence line or a stand-alone application. Waters between 10-100 beef cattle. Drink height 19″

  • ThermalEqualizer design in patented drinking well eliminates cold spots in water storage
  • Elliptical closures tip easily so animals can drink without resistance, unlike round balls which take a great deal of pressure
  • Easy access for easy maintenance
  • High capacity valve, protected from cold by patented drink well
  • Finger-lift service cover; No tools, springs, or clips
  • Optional electric heat, immersion heater and supply line heat cable
  • Covers water so mosquitoes don’t have a place to breed
  • 10 year warranty
Specifications

Length  42.8in/108.71cm

Width  35in/88.9cm

Overall Height 25in/63.5cm

Shipping Weight  152lb/68.95kg

Drinking Height  19in/48.26cm

Capacity  45.5gal/172.24L

Herd Capacity  200 beef

Thrifty King CT4-2000

Thrifty King insulates the water so well that you can make it through the winter without supplying heat in many areas, and it takes little electricity in those areas where the winter is severe or energy free requirements are not met. The water is completely surrounded by fully insulated polyethylene plastic – including an insulated elliptical enclosure covering the drink areas. The covered water keeps the water cooler in summer and reduces loss of water due to evaporation. The cover also protects against mosquitoes breeding, lowering the risk of the spread of West Nile Virus. The CT4-2000 is a four trough automatic waterer for cattle ideal for a fence line or stand-alone application. Optional summer cover is available for the warmer months.

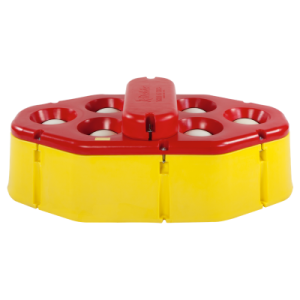

Thrifty King CT6 #16440
Features
The Thrifty King CT6 is a double sided automatic livestock waterer with a total of six drinking areas. Use when watering very large herds by splitting a fence line or stand-alone in a feedlot. Waters between 10-300 beef cattle. Drink height is 19″

  • ThermalEqualizer design in patented drinking well eliminates cold spots in water storage
  • Elliptical closures tip easily so animals can drink without resistance, unlike round balls which take a great deal of pressure
  • Easy access for easy maintenance
  • High capacity valve, protected from cold by patented drink well
  • Summer cover included
  • Optional electric heat, immersion heater and supply line heat cable
  • Covers water so mosquitoes don’t have a place to breed
  • 10 year warranty
Specifications

Length  72.5in/184.15cm

Width  39in/99.06cm

Overall Height  25in/63.5cm

Shipping Weight  210lb/95.25kg

Drinking Height  19in/48.26cm

Capacity  55gal/208.2LHerd Capacity300 beef

Thrifty King CT6

Thrifty King insulates the water so well that you can make it through the winter without supplying heat in many areas, and it takes little electricity in those areas where the winter is severe or energy free requirements are not met. The water is completely surrounded by fully insulated polyethylene plastic – including an insulated elliptical enclosure covering the drink areas. The covered water keeps the water cooler in summer and reduces loss of water due to evaporation. The cover also protects against mosquitoes breeding, lowering the risk of the spread of West Nile Virus. The CT6 provides 6 drinking areas ideal for a fence line or in a large pen or pasture. Summer cover standard for the warmer months.


Immersion heaters provide added protection to all plastic Ritchie waterers during the winter. Minimum maintenance is required to keep them functioning for several years.
Ritchie Thrifty King series is one of our most popular series in our automatic waterer line-up. Providing top-tier insulation properties and a durable design, the Thrifty King series is ideal for energy free automatic waterer usage under the right conditions. Ritchie waterers are created around reliable simplicity yet at times, minor troubleshooting measures must be taken to maintain the long term usage of the waterers. This video highlights the most discussed issues with our customer service team.
