EcoFount Family

EcoFount 1
Features
  • Designed with energy efficiency in mind. The stainless steel trough is surrounded by extremely durable and fully insulated poly.
  • Patented plastic drink well helps insulate water and keep thermal cap in place
  • Flip-top cover feature for easy cleaning and maintenance
  • Electric heat with adjustable disc thermostat
  • Cable heater provides extra valve and supply line protection
  • Trough is 304 stainless steel for long life
  • EcoFount unit comes complete and ready to install to your electric and water lines.
  • 4 – 5″ x 3/8″ Stainless Steel anchor bolts recommended
  • 10 year warranty
Specifications
Length22in/55.88cm

Width18in/45.72cm

Overall Height20in/50.8cm

Shipping Weight41lb/18.6kg

Drinking Height20in/50.8cm

Heat173WCapacity3.5gal/13.25L

Herd Capacity20 horses, 20 beef, 10 dairy

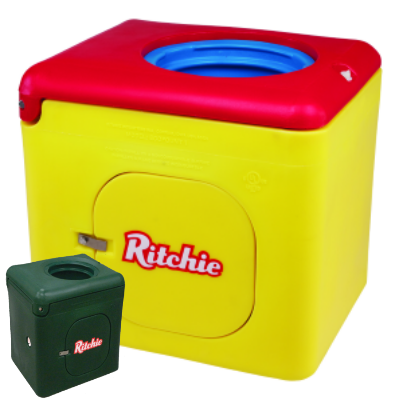

EcoFount 1



The EcoFount waterers are the newest, most energy efficient, electric standard heated line of Ritchie automatic waterers. The flip top cover design allows easy cleaning and maintenance and the fully insulated casing provides excellent protection against cold temperatures. The stainless steel trough features thermostatically controlled heating elements for ice-free service during severe winter conditions. EcoFount 1 is a single drink automatic waterer for 1-30 horses or cattle. Ideally used in small pens or paddocks.

EcoFount 2
Features
  • Designed with energy efficiency in mind. The stainless steel trough is surrounded by extremely durable and fully insulated poly.
  • Patented plastic drink well helps insulate water and keep thermal cap in place
  • Flip-top cover feature for easy cleaning and maintenance
  • Electric heat with adjustable disc thermostat provides overall heat coverage
  • Cable heater provides extra valve and supply line protection
  • Trough is 304 stainless steel for long life
  • EcoFount unit comes complete and ready to install to your electric and water lines.
  • 4 – 5″ x 3/8″ Stainless Steel anchor bolts recommended to anchor to concrete pad.
  • 10 year warranty
Specifications
Length36in/91.44cm

Width  18.5in/46.99cm

Overall Height  20in/50.8cm

Shipping Weight  75lb/34.02kg

Drinking Height  20in/50.8cm

Heat298WCapacity  6.5gal/24.61L

Herd   Capacity40 horses, 40 beef, 20 dairy

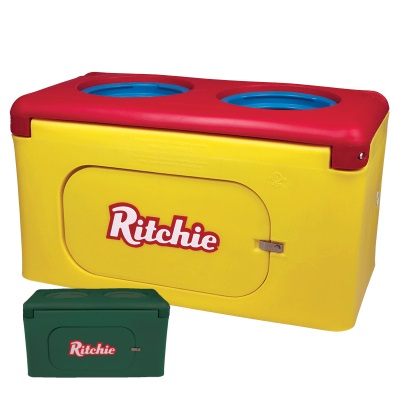

EcoFount 2



The EcoFount waterers are the newest, most energy efficient, electric standard heated line of Ritchie automatic waterers. The flip top cover design allows easy cleaning and maintenance and the fully insulated casing provides excellent protection against cold temperatures. The stainless steel trough features thermostatically controlled heating elements for ice-free service during severe winter conditions. EcoFount 2 is a double drink automatic waterer for 1-60 horses or cattle. Ideally used when splitting a fence for small pens and paddocks.


The anchor bolts locations are located inside and under the trough of the EcoFount automatic waterer. The trough must be removed in order to install the anchor bolts. This video will give detailed instructions on how to easily remove the stainless steel trough.
Changing the valve rubber in a Ritchie automatic waterer valve will help to elongate the life of your valve. Normal wear and tear or a buildup of deposits from your original water source are the main reasons a valve rubber will need to be flipped over or changed. Once you notice a small drip at your valve you will know it is time to change your valve rubber.
Easily remove the drain plug and clean the Ritchie EcoFount automatic waterer.
