Cattle Master Family

CattleMaster 480
Features
  • Install using the same concrete pad and drain-out configuration as the CattleMaster 48
  • Unique patented water seal technology keeps cold air away from valve
  • Electric heat standard; attached directly under the trough for maximum performance
  • Cable heater provides extra valve and supply line protection
  • Trough and hardware is 304 stainless steel for durablility and long life
  • Fully adjustable thermostat
  • Meets Grade A dairy recommendations
  • Constant flow optional
  • Trough slopes toward drain for quick and easy cleaning
  • 10 year warranty
Specifications

Length  51in/129.54cm

Width  23.5in/59.69cm

Overall Height  24in/60.96cm

Shipping Weight  90lb/40.82kg

Drinking Height  16in/40.64cm

Heat  548W

Capacity  20gal/75.71L

Herd  Capacity  200 beef, 100 dairy











CattleMaster 480

CattleMaster fountains provide the best of both worlds: blending technology from traditional stainless steel units and the newest poly units, to provide a premier livestock waterer. Featuring thermostatically controlled heat for ice-free operation and Ritchie’s fast refill valve, Cattlemaster fountains will satisfy your herd’s hydration needs in any climate. The casing of the CattleMaster 480 is made from Ritchie’s heavy-duty, impact resistant polyethylene construction. The roto-molded construction is heavily insulated for energy efficiency and employs UV inhibitors for extended life.

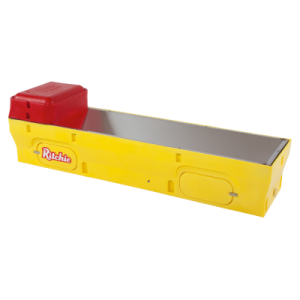

CattleMaster 840
Features
  • Install using the same concrete pad and drain-out configuration as the CattleMaster 84
  • Unique patented water seal technology keeps cold air away from valve
  • Electric heat standard; attached directly under the trough for maximum performance
  • Cable heater provides extra valve and supply line protection
  • Trough and hardware is 304 stainless steel for durablility and long life
  • Fully adjustable thermostat
  • Meets Grade A dairy recommendations
  • Constant flow optional
  • Trough slopes toward drain for quick and easy cleaning
  • 10 year warranty
Specifications
Length86in/218.44cm

Width  23.5in/59.69cm

Overall Height  24in/60.96cm

Shipping Weight 130lb/58.97kg

Drinking Height  16in/40.64cm

Heat  1048W

Capacity  35gal/132.49L

Herd Capacity  300 beef, 150 dairy

CattleMaster 840

CattleMaster fountains provide the best of both worlds: blending technology from traditional stainless steel units and the newest poly units, to provide a premier livestock waterer. Featuring thermostatically controlled heat for ice-free operation and Ritchie’s fast refill valve, Cattlemaster fountains will satisfy your herd’s hydration needs in any climate. The casing of the CattleMaster 840 is made from Ritchie’s heavy-duty, impact resistant polyethylene construction. The roto-molded construction is heavily insulated for energy efficiency and employs UV inhibitors for extended life.

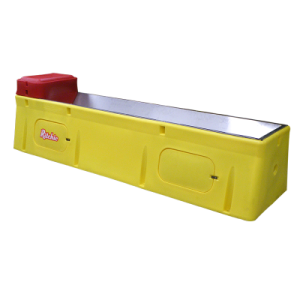

CattleMaster 10T
Features
  • Meets Grade A dairy recommendations
  • 10 Year Warranty
  • UL/CUL Approved
  • Unique water seal keeps cold air away from valve
  • Electric heat standard; attached directly under the trough for maximum performance
  • Cable heater provides exta valve and supply line protection
  • Trough and hardware are 304 stainless steel for durability and long life
  • Fully adjustable thermostat
Specifications
Length120in/304.8cm

Width  32in/81.28cm

Overall Height  33.25in/84.46cm

Shipping Weight  180lb/81.65kg

Drinking Height  25in/63.5cm

Heat  1048W

Capacity  50gal/189.27L

Herd Capacity  400 beef, 200 dairy



CattleMaster 10T

CattleMaster fountains provide the best of both worlds: blending technology from traditional stainless steel units and the newest poly units, to provide a premier livestock waterer. Featuring thermostatically controlled heat for ice-free operation and Ritchie’s fast refill valve, Cattlemaster fountains will satisfy your herd’s hydration needs in any climate. The casing of the CattleMaster 10T offers a taller drink height and is made from Ritchie’s heavy-duty, impact resistant polyethylene construction. The roto-molded construction is heavily insulated for energy efficiency and employs UV inhibitors for extended life.

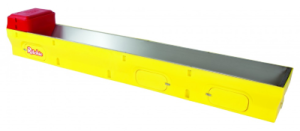

CattleMaster 1440
Features
  • Install using the same concrete pad and drain-out configuration as the CattleMaster 144
  • Unique patented water seal technology keeps cold air away from valve
  • Electric heat standard; attached directly under the trough for maximum performance
  • Cable heater provides extra valve and supply line protection
  • Trough and hardware is 304 stainless steel for durablility and long life
  • Fully adjustable thermostat
Specifications
Length145.5in/369.57c

Width   23.5in/59.69cm

Overall Height  16in/40.64cm

Shipping Weight  272lb/123.38kg

Drinking Height  16in/40.64cm

Capacity  60gal/227.12L

Herd Capacity  475 beef, 240 dairy

CattleMaster 1440

CattleMaster fountains provide the best of both worlds: blending technology from traditional stainless steel units and the newest poly units, to provide a premier livestock waterer. Featuring thermostatically controlled heat for ice-free operation and Ritchie’s fast refill valve, Cattlemaster fountains will satisfy your herd’s hydration needs in any climate. The casing of the CattleMaster 1440 is made from Ritchie’s heavy-duty, impact resistant polyethylene construction. The roto-molded construction is heavily insulated for energy efficiency and employs UV inhibitors for extended life.
